Full Automatic Pipe Tube Forming Bending Shrinking Machine For IBC Frame Pallet Tube

Name: Full Automatic Pipe Tube Forming Bending Shrinking Machine For IBC Frame Pallet Tube
Brand: HWASHI
Price: 1 USD

China Full Automatic Pipe Tube Forming Bending Shrinking Machine For IBC Frame Pallet Tube wholesale

Brand Name : HWASHI

Model Number : WL-ATM-150K

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

Product Name : Automatic Tube Forming, Bending and Shrinking Machine for IBC Frame Pallet Tube

Application : P-Tube And Round Tube

Size : according to your products

Condition : New

Warranty : 12months

Certificate : CE/CCC/ISO

Service Life : 8-10 years

Contact Now

Hwahsi Automatic Tube Forming, Bending and Shrinking Machine for IBC Frame Pallet Tube

Description Of The IBC Cage Frame Automatic Production Line

Full Automatic Pipe Tube Forming Bending Shrinking Machine For IBC Frame Pallet Tube

The IBC cage frame automatic production line is mainly used to manufacturing the IBC cage frame. It is composed of cage frame automatic welding machine, mesh unloading mechanical arm, turnover table, automatic frame bending machine, locking machine, hole making and punching machine, automatic production line moving mechanical arm. The complete line requires only 3-4 person. Operator only need to do the material loading to the frame welding machine, and do unloading at the end of the line. Also we can equip the line with automatic base frame welding machine and automatic unloading mechanical arm for the base frame.

Full Automatic Pipe Tube Forming Bending Shrinking Machine For IBC Frame Pallet Tube

Running Process Of The IBC Cage Frame Automatic Production Line :
Frame welding——bending——locking——hole punching——unloading——base frame welding——base frame loading——manual screw for base frame and outer frame

Description Of Automatic Tube Forming, Bending and Shrinking Machine

Full Automatic Pipe Tube Forming Bending Shrinking Machine For IBC Frame Pallet Tube

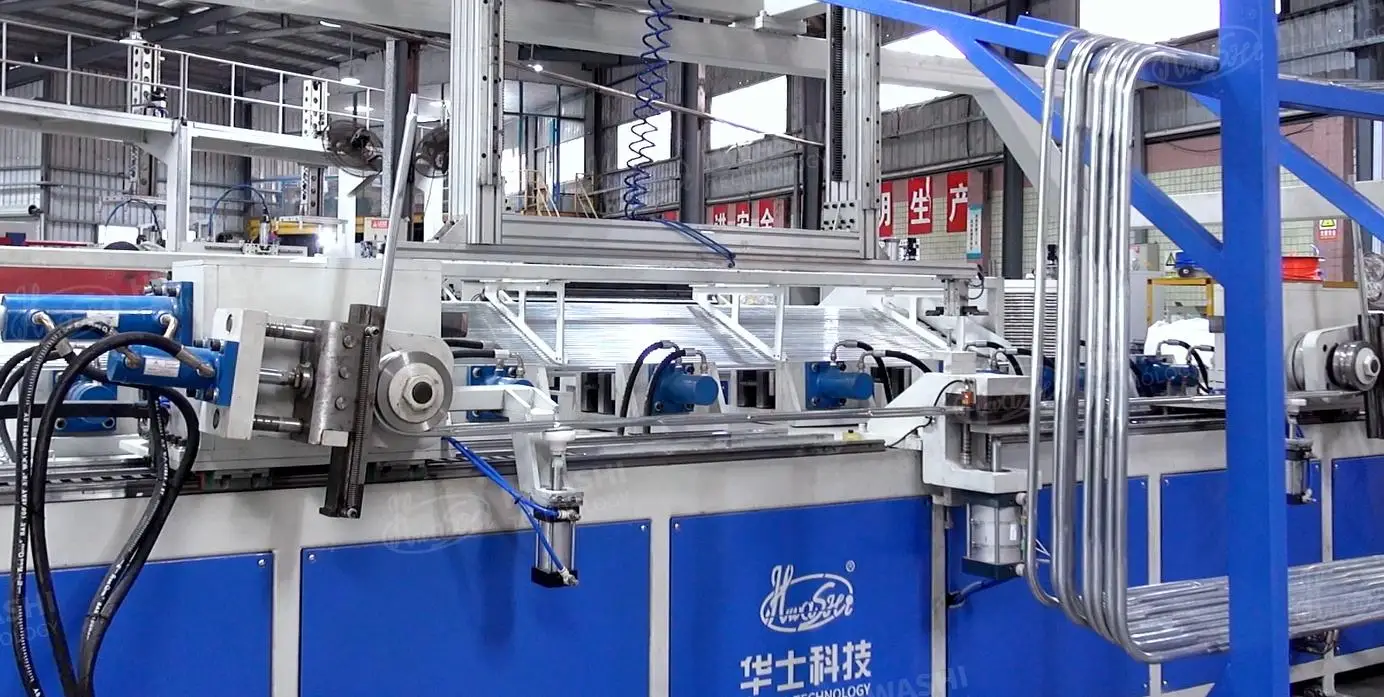

Automatic tube forming, bending and shrinking machine is a special customized machine for IBC base pipe processing. It can achieve full automatic pipe feeding, pipe end shrinking, pipe hydraulic pressing, double head pipe bending, and automatic unloading process. No operator needed. It helps to greatly increase the production rate, and save manpower.

Features Of The Double Bending Shrinking Machine

Full Automation: The machine operates seamlessly through a fully automated process, from pipe feeding to double head pipe bending and unloading, eliminating the need for manual oversight.

Pipe End Shrinking and Hydraulic Pressing: With capabilities for pipe end shrinking and hydraulic pressing, the machine ensures precise and consistent processing of IBC base pipes, meeting quality standards.

Automatic Unloading: The machine incorporates an automatic unloading process, streamlining the production workflow and minimizing downtime.

Manpower Savings: The absence of the need for operators during the machine's operation results in significant savings on manpower, reducing labor costs for production.

Production Rate Enhancement: The advanced automation and efficient processes of the machine lead to a substantial increase in production rates, ensuring higher output within shorter timeframes.

The Automatic Pipe Pressing, Shrinking, and Double Bending Machine for IBC TOTES frame represents a state-of-the-art solution in IBC base pipe processing, offering manufacturers a reliable, high-speed, and labor-saving means to optimize their production capabilities.

Full Automatic Pipe Tube Forming Bending Shrinking Machine For IBC Frame Pallet Tube

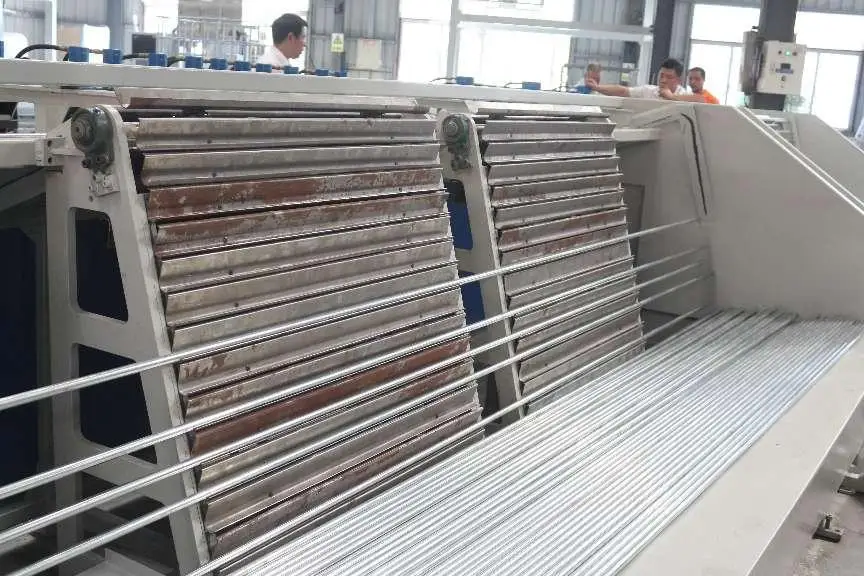

Manually load the round tubes before processing into the hopper. The feeder will load the pipe to the hydraulic pressing station automatically.

Full Automatic Pipe Tube Forming Bending Shrinking Machine For IBC Frame Pallet Tube

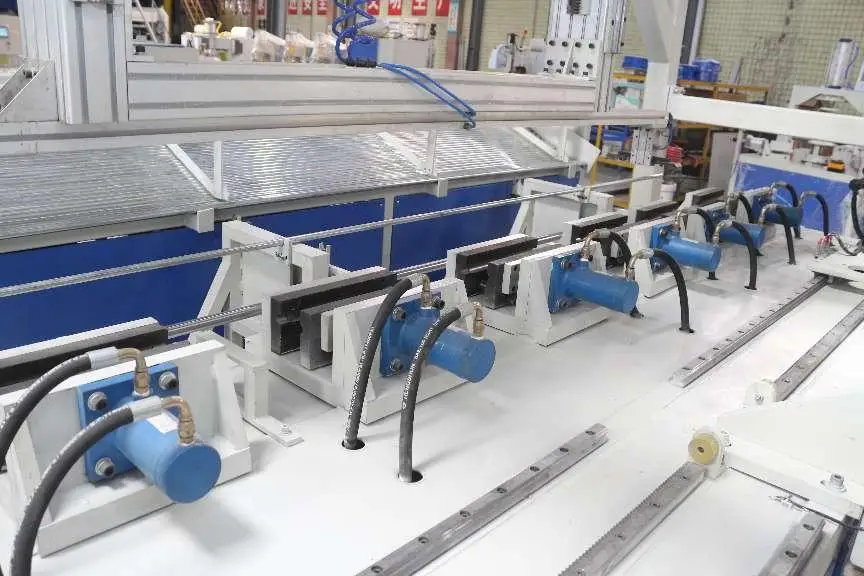

The mechanical arm will pick up the tube and load it to the hydraulic pressing station to do the pressing and tube end shrinking.

Full Automatic Pipe Tube Forming Bending Shrinking Machine For IBC Frame Pallet Tube

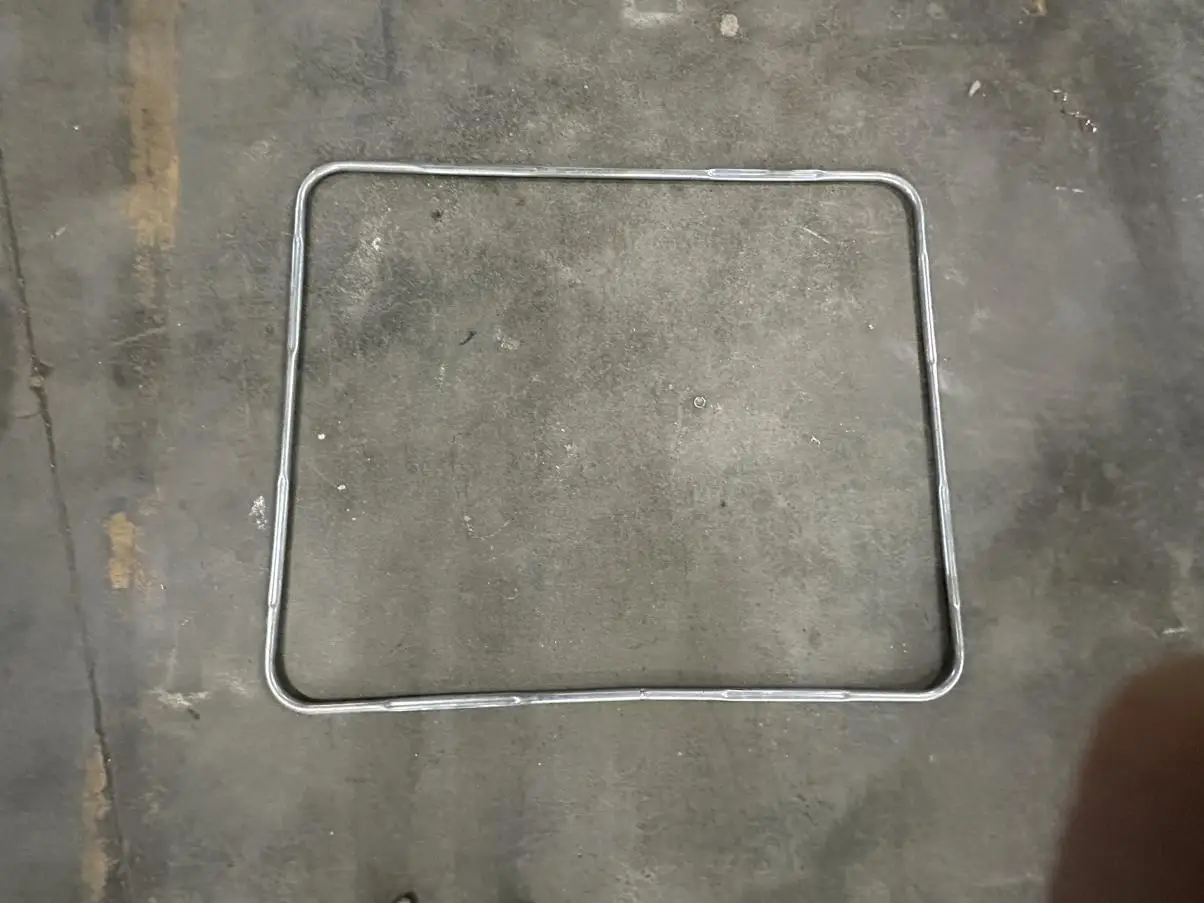

After pressing, the tube will be loaded to the bending station to do the bending into square shape. After bending, the tube will be unloaded to the frame and stacking automatically.

Technical Data Of The Double Bending Shrinking Machine

Items	Data
Pipe Diameter	Round pipe 18mm (customized)
Pressing Source	Hydraulic
Pressing Mark Number	20
Shrinking Function	Yes
Each Time Processing Number	2 pcs
Efficiency	12-15sec/2pcs

Application Of The Double Bending Shrinking Machine

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Full Automatic Pipe Tube Forming Bending Shrinking Machine For IBC Frame Pallet Tube

Samples Of The Double Bending Shrinking Machine
