Crank Arm Type Spot Welding Machine For Sheet Metal Ideal Automobile Metal Plates Projection Welder Welding Machine

Name: Crank Arm Type Spot Welding Machine For Sheet Metal Ideal Automobile Metal Plates Projection Welder Welding Machine
Brand: HWASHI
Price: 1 USD

China Crank Arm Type Spot Welding Machine For Sheet Metal Ideal Automobile Metal Plates Projection Welder Welding Machine wholesale

Brand Name : HWASHI

Model Number : WL-C-20K

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

After-sales Service Provided : Engineers available to service machinery overseas

Product Name : Rocker Arm Medium Frequency Table Spot Welder

Welding Head : Single Head

Welding Material : Welding Material

Working Platform Size : Working Platform Size

Machine controller : Intelligent Mircomputer controller

Contact Now

Crank Arm Type Spot Welding Machine For Sheet Metal Ideal Automobile Metal Plates Projection Welder Welding Machine

Description

Crank arm mobile flat plate spot welder is designed with multi-joint manually movement accordingto the principle of mechanical arm.The bottom electrodeplate mode is suitable for the product of plate table withmulti-welding point on the surface, to ensure thesmoothness of the product surface and consistencyof welding point.

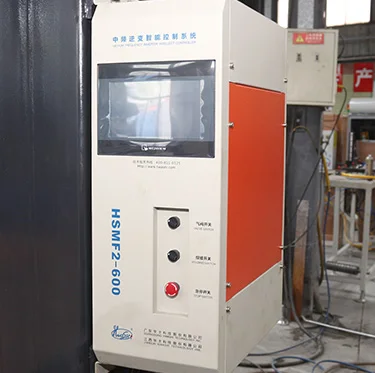

Intelligent welding control system

Intelligent Touch Screen Controller Input and read welding parameters. The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily.

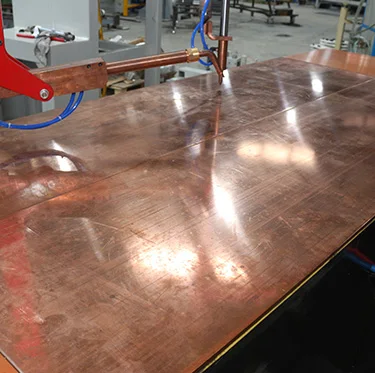

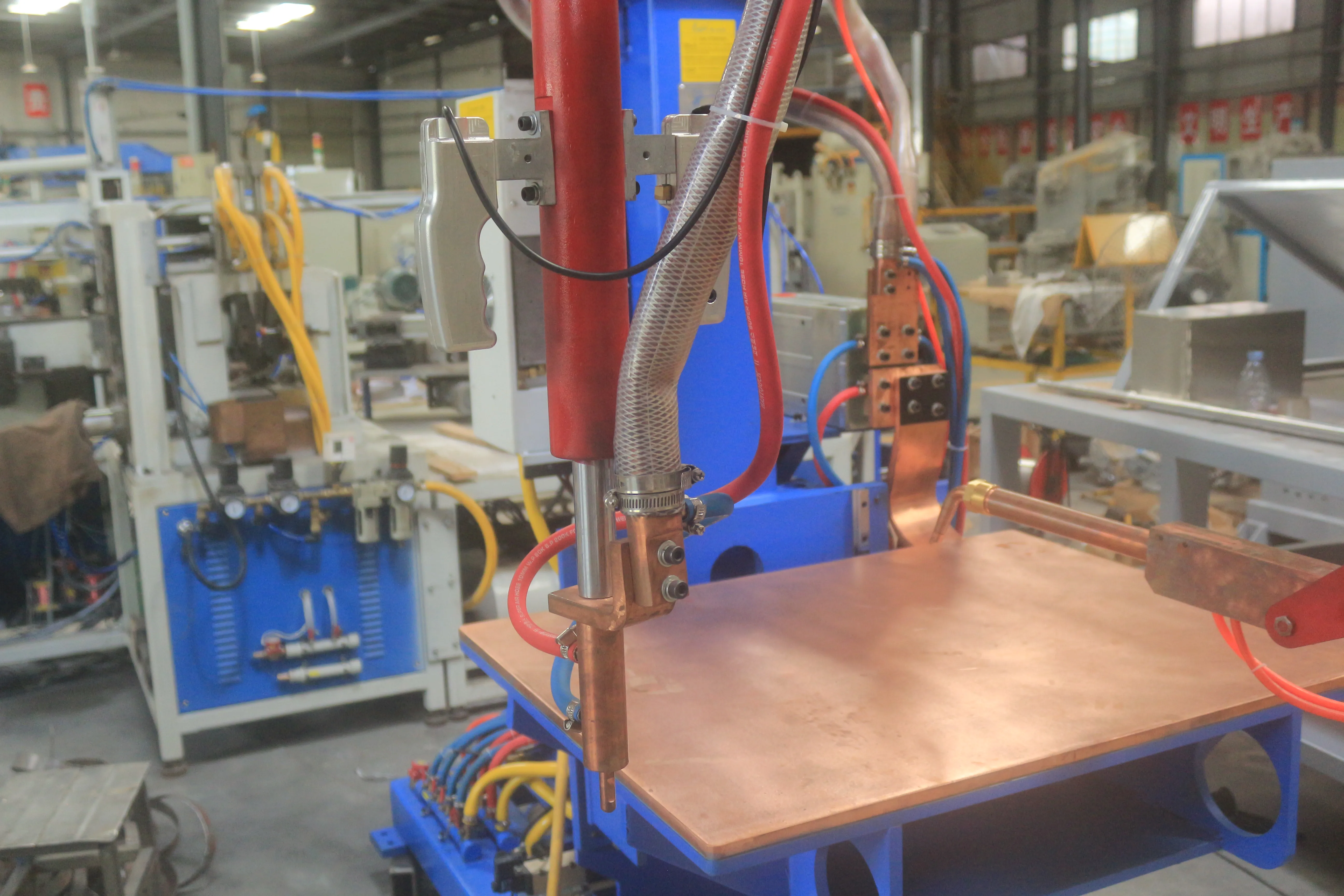

Welding platform

Flat big copper table for welding various sheet metal door panels. If the workpiece can be placed on the table-type electrode, it can be welded without the use of auxiliary personnel. The welding gun move freely, allowing easy access to the desired welding point by one person.

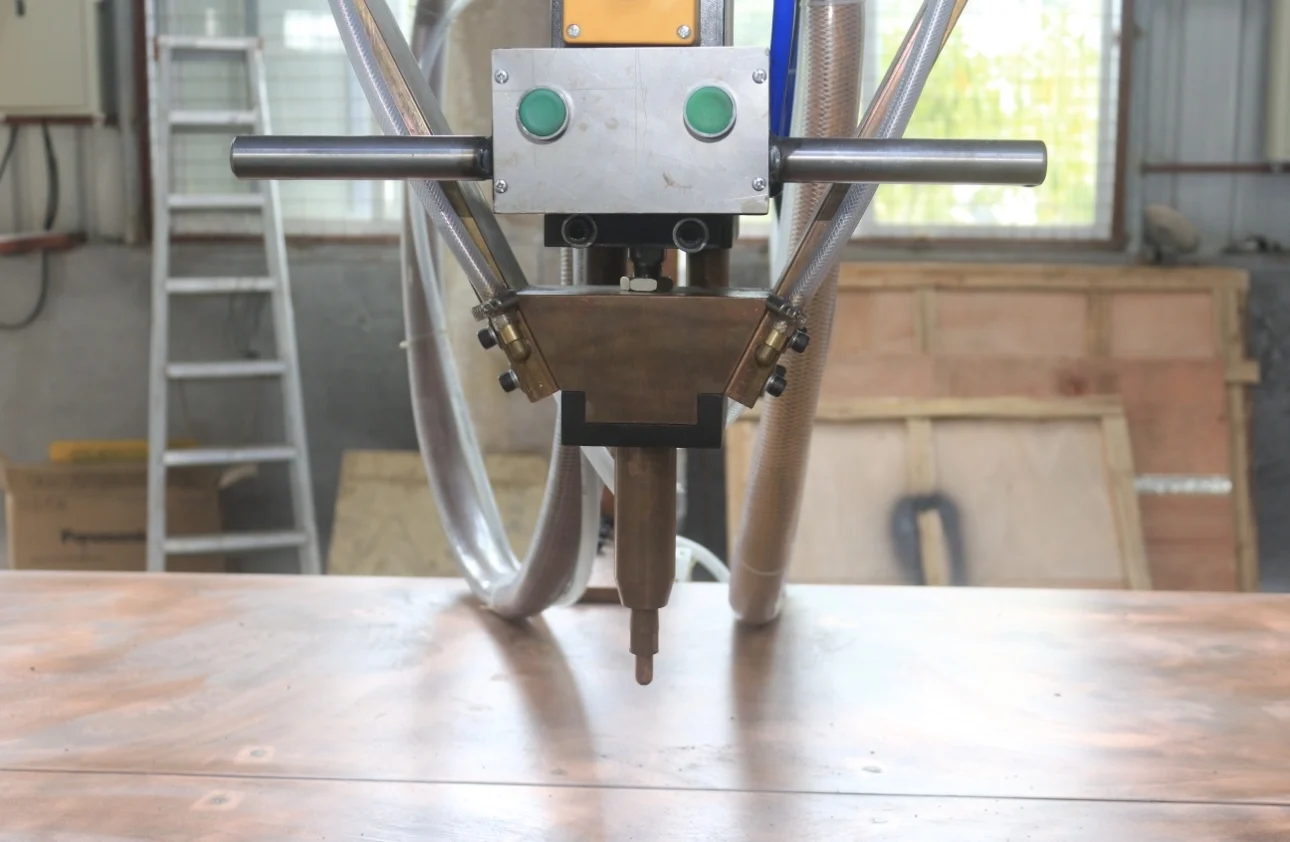

Vertical Welding Gun

The V-gun is the most suitable gun for welding deep box products that are closed on all sides. The tip of the gun has a crank shape that makes it easy to aim at the edge of the workpiece. It can also apply pressure directly to the surface, making it ideal for welding nuts, screws, and bosses.

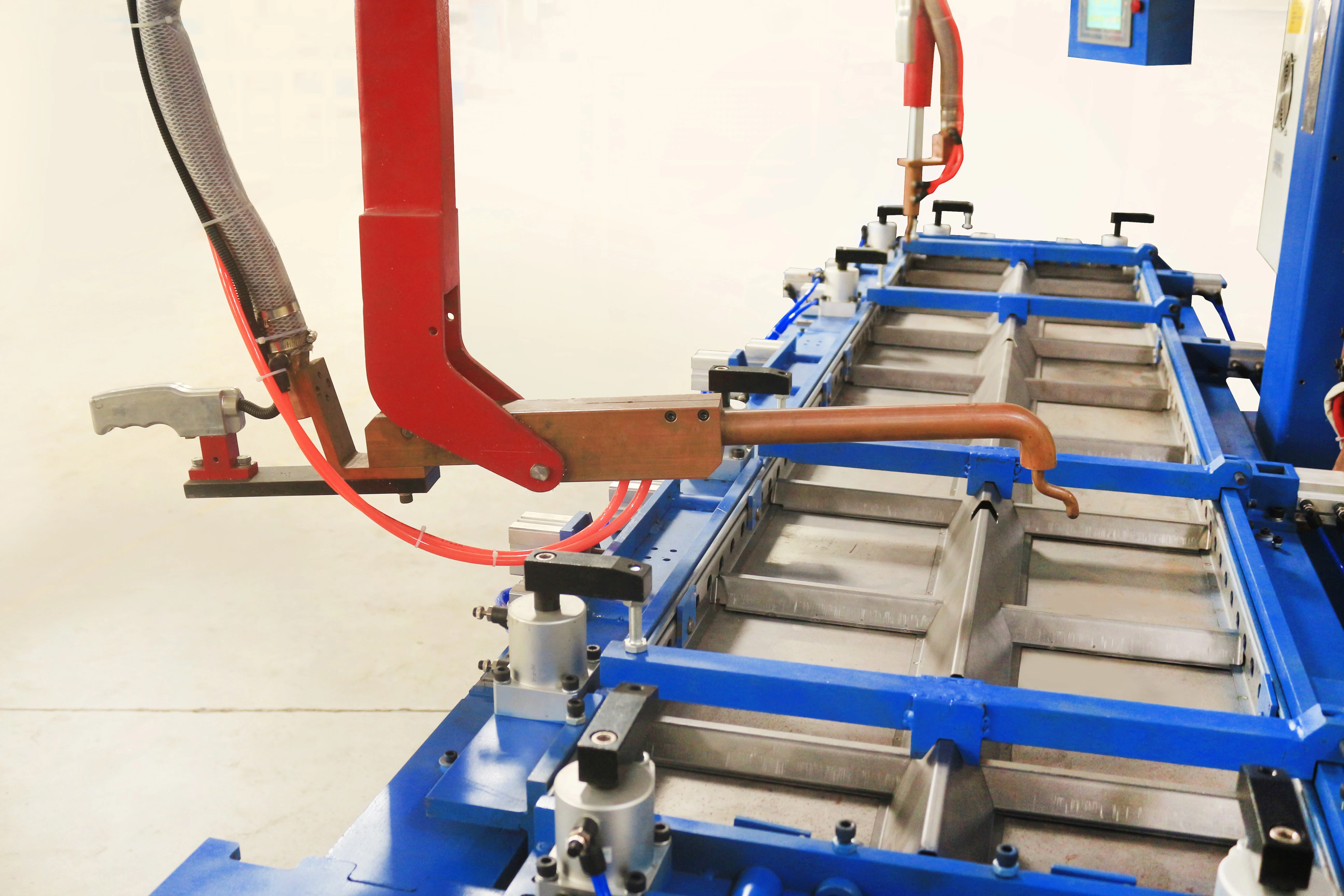

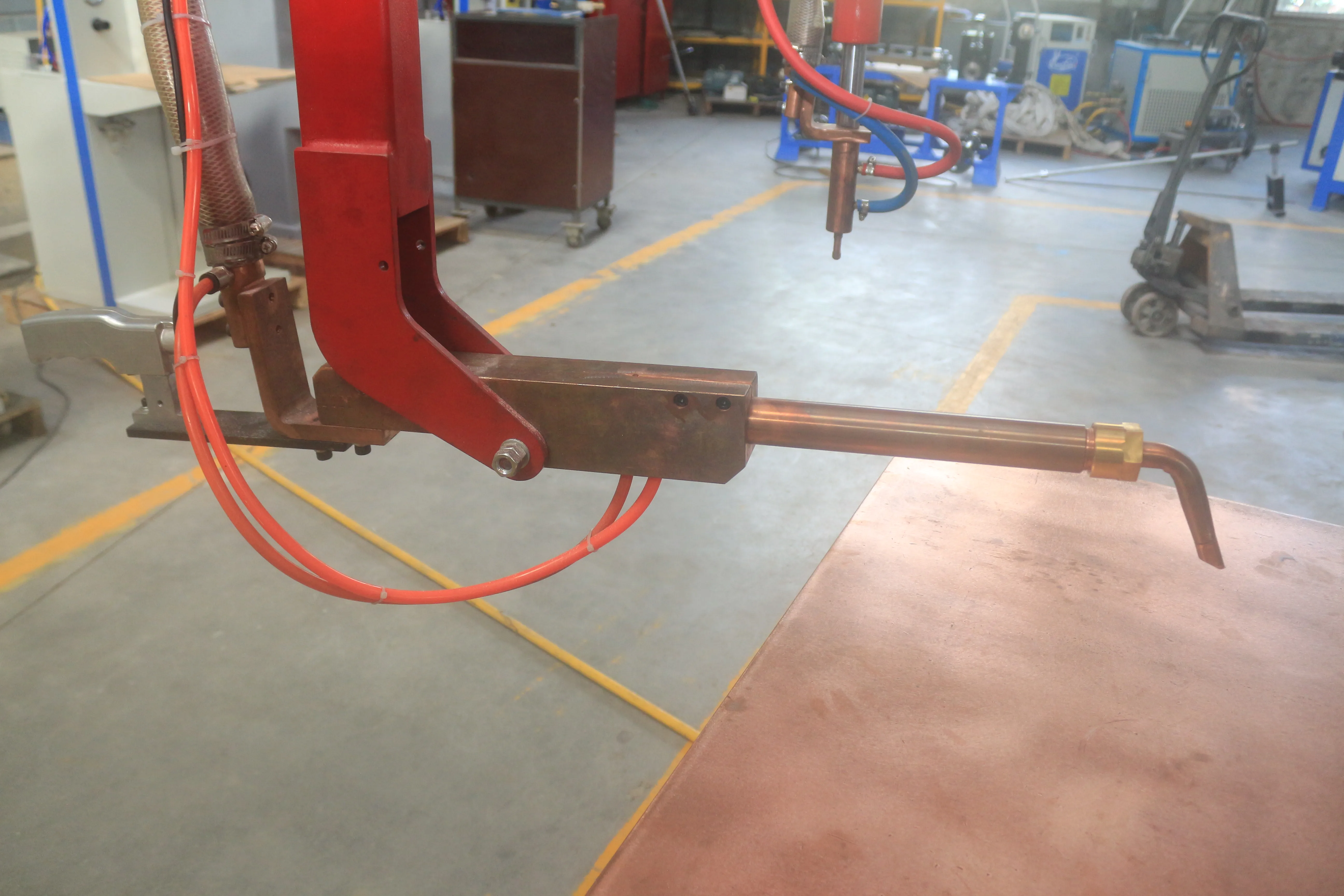

Horizontal Welding Gun

The H-gun is a long horizontal gun suitable for welding complex workpiece shapes and deep areas. It is possible to weld as desired while moving the gun freely on the table electrode.

Standard Welding Electrode

Welding can be done efficiently by changing the electrode tip according to the type and size of product. It can also weld nut, or screws, etc.

Easy Set up and Operation.

Comfortable working position: There is no need to hold the workpiece during welding; Pressurization is also automatic, greatly reducing the physical burden on the operator.

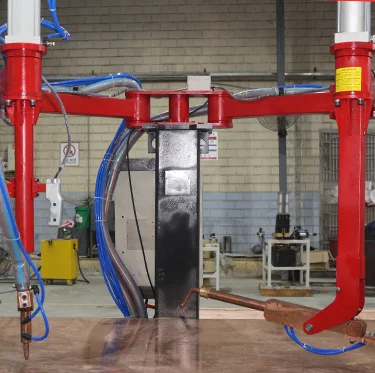

Double welding arm structure

2 types of welding methods are available according to different welding requirements

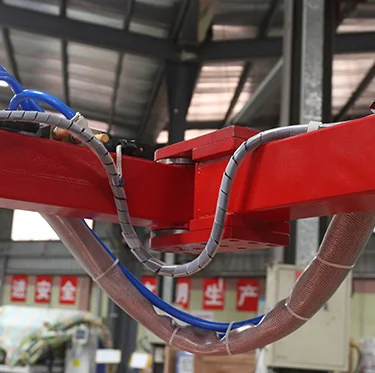

Multi-joint welding arm

Movable and reorientable welding arm.

Table Spot Welding Machine Advantages

* Refined welding * No need for special equipment * Maximally easy working area access * Production flexibility * Reduced labor costs * Horizontal and vertical surface welding * Single-Arm Table Spot Welding Machine * Refined welding * No need for special equipment * Maximally easy working area access * Production flexibility * Reduced labor costs * Horizontal and vertical surface welding * Single-Arm Table Spot Welding Machine

Model	WL-SF-50/75/100K/160K
Input Power (V/φ)	380/3
Rated Power (KVA)	50/75/100/160
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Wleding Thickness (MM)	3.0+3.0
Warranty	1 years

Other Related Machines

sheet metal spot welding machine

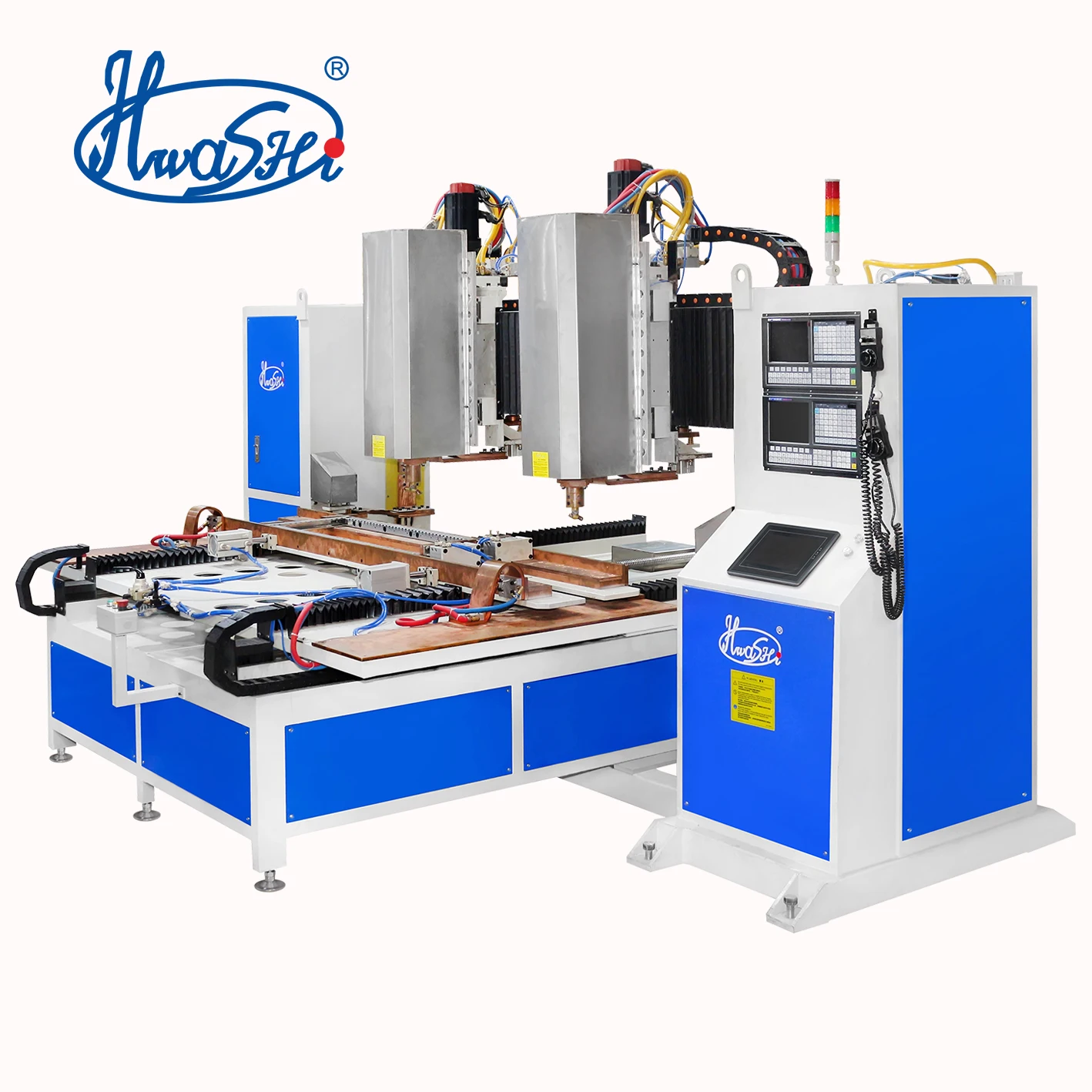

CNC Automatic Moving Spot Welding Machine
